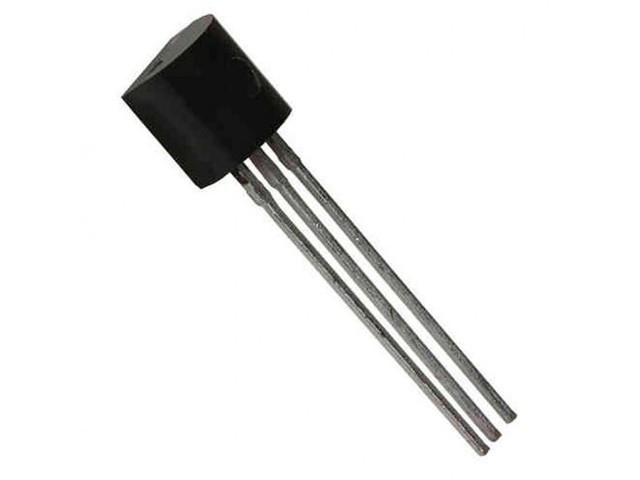

N 45V 30V 100mA Transistor [BC413]
N 45V 30V 100mA Transistor [BC413]

Transistor Silicon NPN

Transistor

BC413
N 45V 30V 100mA Transistor
0.51 ZAR
inc
for 1 Each
202 in Stock
Add
Specifications, Prices & Availability may change without notice. Images are for illustration purposes only. E&OE

Specifications

Case TO92
Vbr CBO 45
Vbr CEO 30
Max. PD (W) 620m
C(ob) (F) 2.5p
Derate (Amb) (W/°C) 2.5m
t(f) Max. (S) 250n+
hfe 250
Ic Max. (A) 200m
Icbo Max. @Vcb Max. (A) 15n
Polarity NPN
Tr Max. (s) 70n
Trans. Freq (Hz) Min. 250M
@VCE (test) (V) 5.0
Oper. Temp (°C) Max. 150
@Ic (A) 2.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 45 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 5 pF
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 180
