Circular Connector M23 Signal Male Crimp Insert - 6 Pole for 2mm Contacts - 20A @ 630VAC Max. [7003906101]
Circular Connector M23 Signal Male Crimp Insert - 6 Pole for 2mm Contacts - 20A @ 630VAC Max. [7003906101] Circular Connector M23 Signal Male Crimp Insert - 6 Pole for 2mm Contacts - 20A @ 630VAC Max. [7003906101] Circular Connector M23 Signal Male Crimp Insert - 6 Pole for 2mm Contacts - 20A @ 630VAC Max. [7003906101] Circular Connector M23 Signal Male Crimp Insert - 6 Pole for 2mm Contacts - 20A @ 630VAC Max. [7003906101]

M23 Signal Male Crimp Insert

Crimp Insert

7003906101

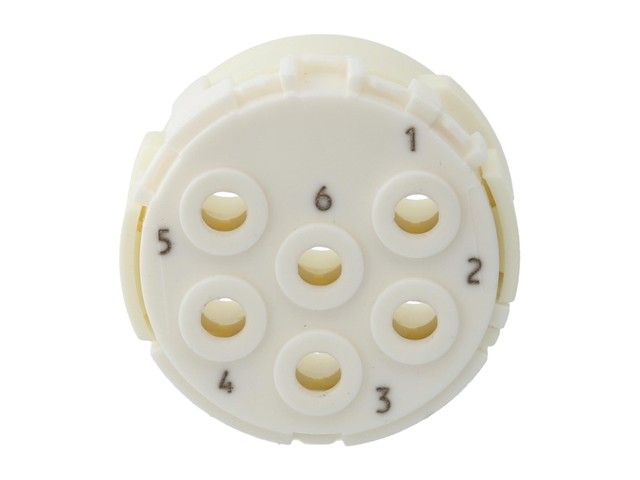

Circular Connector M23 Signal Male Crimp Insert - 6 Pole for 2mm Contacts - 20A @ 630VAC Max.
67.88 ZAR
inc
for 1 Each
11 in Stock
Add
Specifications, Prices & Availability may change without notice. Images are for illustration purposes only. E&OE

Specifications

Type: Crimp contact insert
Series: M23 Signal
Design: Pin
Connection technology: Crimp connection

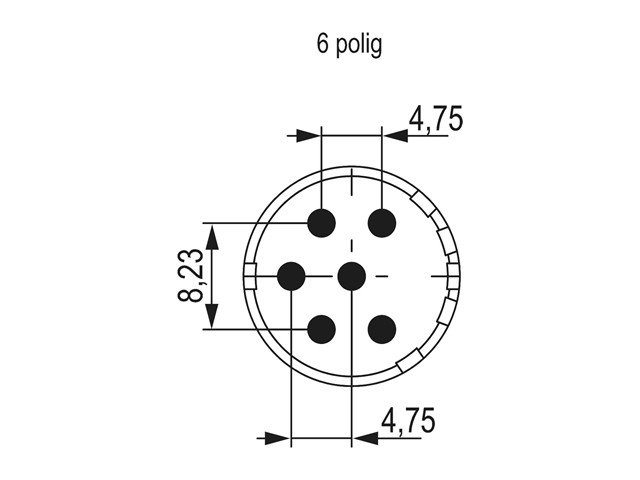

Number of poles: 6-pole
Coding: N,S,H,X,Y,Z
Coding direction: clockwise (standard)
Labelling: 1 - 6
Rated voltage: Voltage:  300V
Rated current: Power:  20A
Pollution level: 3
Cross-section: mm²:  0.75 mm²-2.5 mm²
Contact diameter: 2.0 mm
Temperature range: -40°C to 125°C
Mating cycles: >=1000
Material: Insulating material:  Polybutylene terephthalate (PBT)/polyamide (PA6)
Colour: Colour shade:  white
Matching data: Signal plug / signal connector
