Circular Connector M23 Signal Female Crimp Insert CCW- 12 Pole for 12 x 1mm Contacts - 8/20A @ 500VAC Max. [7004912102]
Circular Connector M23 Signal Female Crimp Insert CCW- 12 Pole for 12 x 1mm Contacts - 8/20A @ 500VAC Max. [7004912102] Circular Connector M23 Signal Female Crimp Insert CCW- 12 Pole for 12 x 1mm Contacts - 8/20A @ 500VAC Max. [7004912102] Circular Connector M23 Signal Female Crimp Insert CCW- 12 Pole for 12 x 1mm Contacts - 8/20A @ 500VAC Max. [7004912102] Circular Connector M23 Signal Female Crimp Insert CCW- 12 Pole for 12 x 1mm Contacts - 8/20A @ 500VAC Max. [7004912102] Circular Connector M23 Signal Female Crimp Insert CCW- 12 Pole for 12 x 1mm Contacts - 8/20A @ 500VAC Max. [7004912102] Circular Connector M23 Signal Female Crimp Insert CCW- 12 Pole for 12 x 1mm Contacts - 8/20A @ 500VAC Max. [7004912102]

M23 Signal Female Crimp Insert

Crimp Insert

7004912102

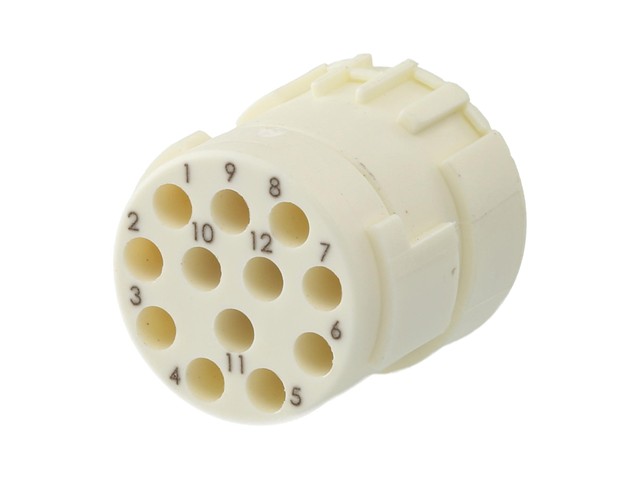

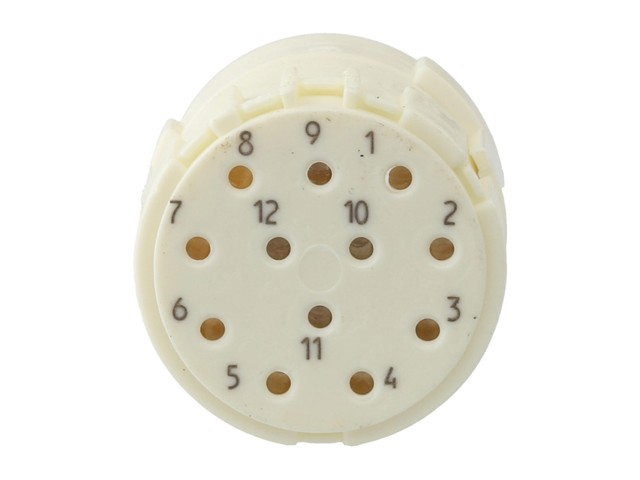

Circular Connector M23 Signal Female Crimp Insert CCW- 12 Pole for 12 x 1mm Contacts - 8/20A @ 500VAC Max.
74.34 ZAR
inc
for 1 Each
3 in Stock
Add
Specifications, Prices & Availability may change without notice. Images are for illustration purposes only. E&OE

Specifications

Type: Crimp contact insert
Series: M23 Signal
Design: Socket
Connection technology: Crimp connection
Number of poles: 12-pole
Coding: N,S,H,X,Y,Z
Coding direction: clockwise (counter-rotation)
Labelling: 1 - 12
Rated voltage: Voltage:  200V
Rated current: Power:  8A
Pollution level: 3
Cross-section: mm²:  0.08 mm²-1.5 mm²
Contact diameter: 1.0 mm
Temperature range: -40°C to 125°C
Mating cycles: >=1000
Material: Insulating material:  Polybutylene terephthalate (PBT)/polyamide (PA6)
Colour: Colour shade:  white
Matching data: Signal plug / signal connector
