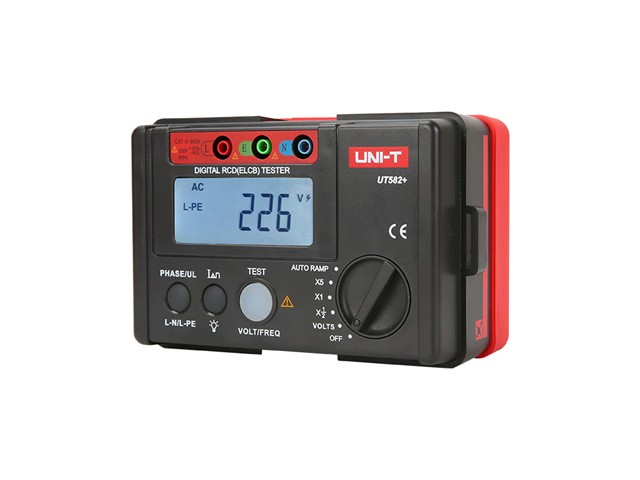

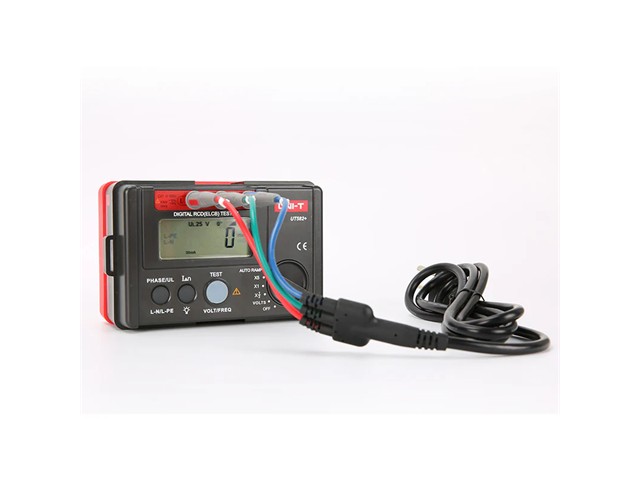

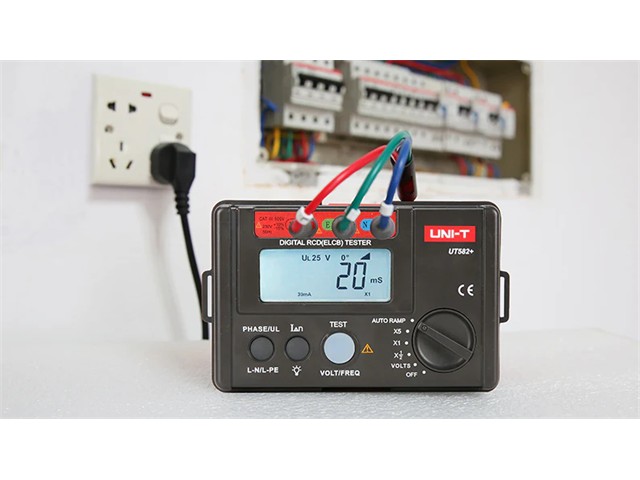

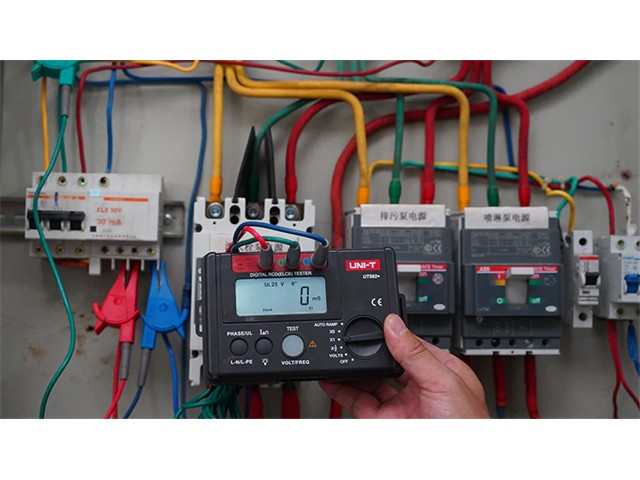

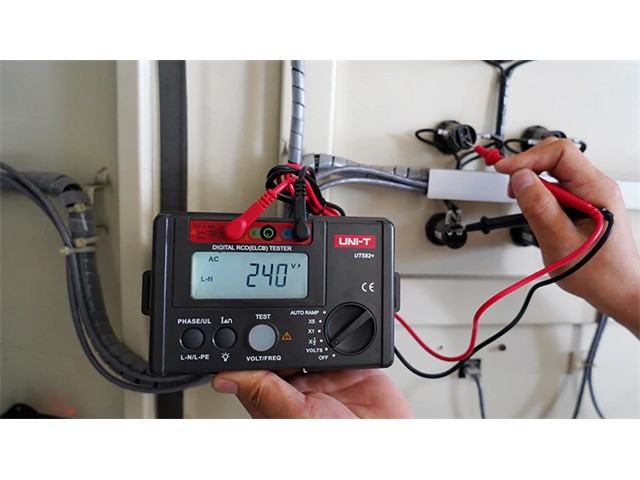

Catalog > Test and Measurement > Test and Measurement Instruments > Multimeters > Digital Multimeters Digital RCD (ELCB) Tester Display Digital RCD (ELCB) Tester Display UNI-T UT582+ Digital RCD (ELCB) Tester Display CNT 1000, Phase Switch, Connection Check Function, Auto Ramp Fucntion, Disconnect Buzzer, Over-range Display:OL, Fused, MIS-Operation Buzzer, Power Off Buzzer, Full Icon Display, Voltage Range:30~600V, FREQ:45Hz~65Hz 3,964.22 ZAR inc for 1 Each 0 in Stock Add Specifications, Prices & Availability may change without notice. Images are for illustration purposes only. E&OE Overview UT582+ is mainly used to detect whether the RCD in the circuit can be triggered normally. It is only suitable for single-phase circuits with the supply voltage range of 195V~253V. Its voltage measurement range is 30V~600V, 45Hz~65Hz. Features Power Off Gear: Easily switch off the device when not in use. LCD Backlight: Enhances visibility in various lighting conditions. Data Hold: Freezes and retains the displayed data for convenience. AUTO RAMP: Automatic ramp function for efficient operation. Disconnect Buzzer: Audible alert when disconnecting the device. Over-Range Display (OL): Indicates when the measurement exceeds the range. Protective Fuses: Equipped with fuses to protect against overloads. Mis-Operation Buzzer: Audible warning for incorrect operations. Power Off Buzzer: Audible alert when turning off the device. Full Icon Display: Comprehensive icon display for easy interpretation of information. Certifications: CE, UKCA, ensuring compliance with safety standards. Specifications Specifications Range UT582+ RCD measurement Range setting Rated operating current Trip time X 1/2 10mA/20mA/30mA/100mA/300mA/500mA 2000ms -10%~0% X 1 10mA/20mA/30mA/100mA/300mA 1000ms 0%~10% 500mA 300ms 0%~10% X 5 10mA/20mA/30mA 40ms 0%~10% AUTO RAMP 10mA/20mA/30mA/100mA/300mA/500mA 300ms -10%~10% Trip time accuracy ±(2%+2) Operating voltage (Freq.) 195V~253V Voltage measurement Voltage range 30~600V Frequency 45Hz~65Hz Resolution 1V Accuracy ±(3%+3) Features Display count 999 Power off gear Yes Low battery indication <7.2V APO Auto power off fuction LCD backlight Yes Data hold Yes Phase angle selection 0° and 180° Connections check Simultaneously test the trip time and trip current AUTO RAMP Yes Disconnect buzzer Yes Over-range display OL Fused Yes Mis-operation buzzer Yes Power off buzzer Yes Full icon display Yes Compliance standard IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007;IEC 61557-6:2007, EN61326-1, EN61326-2-2 Lead sequence check LCD General Characteristics Power 1.5V battery (LR6) x 6 Display 71mm x 34mm Product color Red and grey Product net weight 400g Product size 160mm x 100mm x 71mm Standard accessories Test line, carrying bag, elastic strap Standard individual packing Gift box, English manual Downloads Datasheet - UNI-T UT582+ PDF File 367.29 KB
