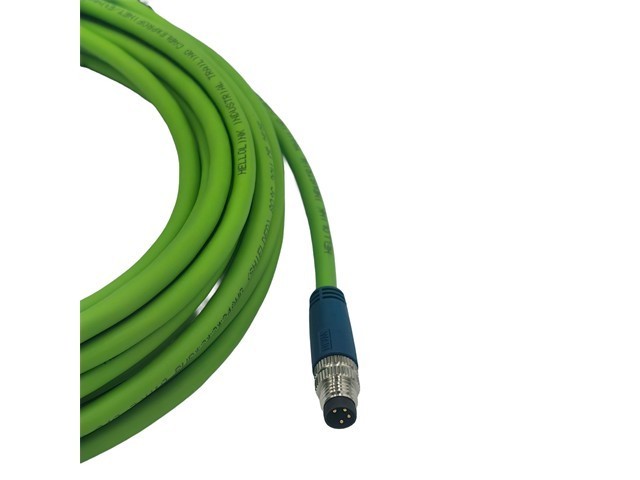

Cordset M8 Male 4 Pole - M8 Male 4 Pole EtherCat - Double End - 3M PUR Cable [M8-M04-T/M04-T-3.0-PUR-ETHERCAT]
Cordset M8 Male 4 Pole - M8 Male 4 Pole EtherCat - Double End - 3M PUR Cable [M8-M04-T/M04-T-3.0-PUR-ETHERCAT] Cordset M8 Male 4 Pole - M8 Male 4 Pole EtherCat - Double End - 3M PUR Cable [M8-M04-T/M04-T-3.0-PUR-ETHERCAT] Cordset M8 Male 4 Pole - M8 Male 4 Pole EtherCat - Double End - 3M PUR Cable [M8-M04-T/M04-T-3.0-PUR-ETHERCAT]

Cordset M8 Male 4 Pole -M8 Male 4 Pole EtherCat

Cordset M8 Male 4 Pole M8 Male 4 Pole EtherCat EtherCat

M8-M04-T/M04-T-3.0-PUR-ETHERCAT
Cordset M8 Male 4 Pole - M8 Male 4 Pole EtherCat - Double End - 3M PUR Cable
589.00 ZAR
inc
for 1 Each
3 in Stock
Add
Specifications, Prices & Availability may change without notice. Images are for illustration purposes only. E&OE

Specifications

  • Product Code: M8-M04-T/M04-T-3.0-PUR-ETHERCAT

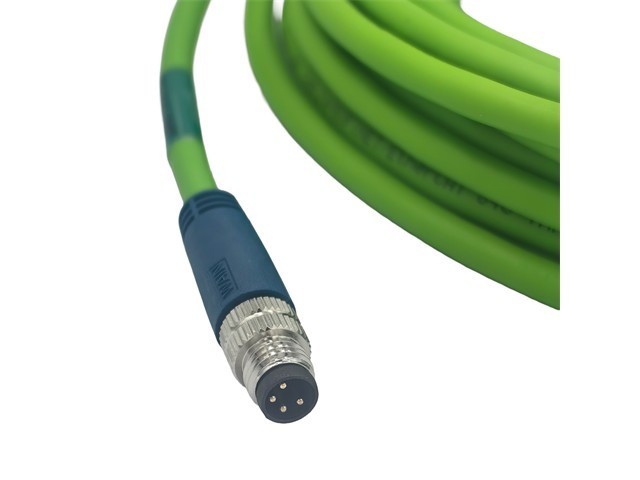

  • Connector A: M8 male, 4-pin
  • Connector B: M8 male, 4-pin
  • Coding: Industrial Ethernet / EtherCAT
  • Cable Length: 3 m
  • Cable Jacket: PUR (Polyurethane)
  • Shielding: Shielded
  • Conductor: 4 × twisted conductors
  • Typical Conductor Size: AWG22–AWG26
  • Rated Voltage: approx. 30 V
  • Rated Current: up to 3–4 A
  • Protection Rating: IP67 (when connected)
  • Cable Diameter: ~5–6 mm
  • Bending Radius (fixed): ~5 × cable diameter
  • Bending Radius (moving): ~10 × cable diameter
  • Temperature Range: approx. −40 °C to +80 °C
