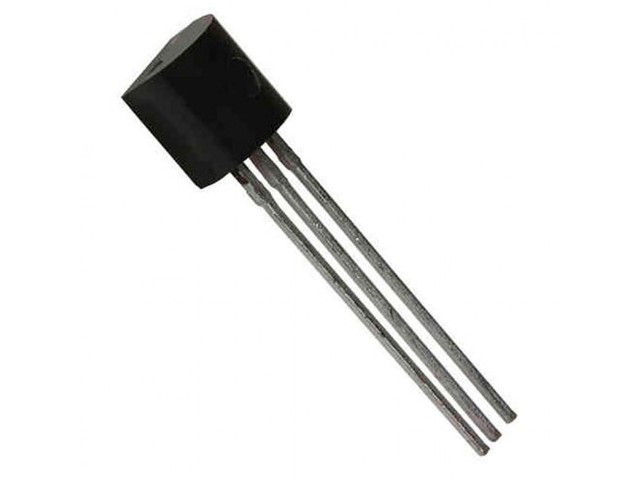

N 50V 45V 100mA 200MN TO92 [BC546B]
N 50V 45V 100mA 200MN TO92 [BC546B]

Transistor Silicon NPN

Transistor

BC546B
N 50V 45V 100mA 200MN TO92
0.62 ZAR
inc
for 1 Each
155 in Stock
Add
Specifications, Prices & Availability may change without notice. Images are for illustration purposes only. E&OE

Specifications

Case TO92
Vbr CBO 80
Vbr CEO 65
Max. PD (W) 500m
C(ob) (F) 2.5p
Derate (Amb) (W/°C) 4.0m
hfe 330
Ic Max. (A) 100m
Icbo Max. @Vcb Max. (A) 15n
Polarity NPN
Trans. Freq (Hz) Min. 300M
@VCE (test) (V) 5.0
Oper. Temp (°C) Max. 150
@Ic (A) 2.0m
Pinout Equivalence Number 3-17
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.5 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 65 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 4.5 pF
Transition Frequency (ft): 150 MHz
Forward Current Transfer Ratio (hFE), MIN 200
