F35 Fingerprint Scanner [ZKT F35] .::. Communica Online

ZK Teco F35 Fingerprint Scanner with Video Intercom Function 2.4″ TFT LCD Colour, 10 000 Fingerprints, 10 000 Cards RFID 125KHz, TCP/IP, RS485 & WiFi, 12VDC 3A, 195x75x25mm, IP65 & IK04 [ZKT F35]

F35 Fingerprint Scanner

F35 / Fingerprint Scanner

ZK Teco F35 Fingerprint Scanner with Video Intercom Function 2.4″ TFT LCD Colour, 10 000 Fingerprints, 10 000 Cards RFID 125KHz, TCP/IP, RS485 & WiFi, 12VDC 3A, 195x75x25mm, IP65 & IK04

Part No: ZKT F35

	5 002.50	ZAR
		inc
for 1 Each

(Quoting) Add to Cart

Specifications, Prices & Availability may change without notice. Images are for illustration purposes only. E&OE

Overview

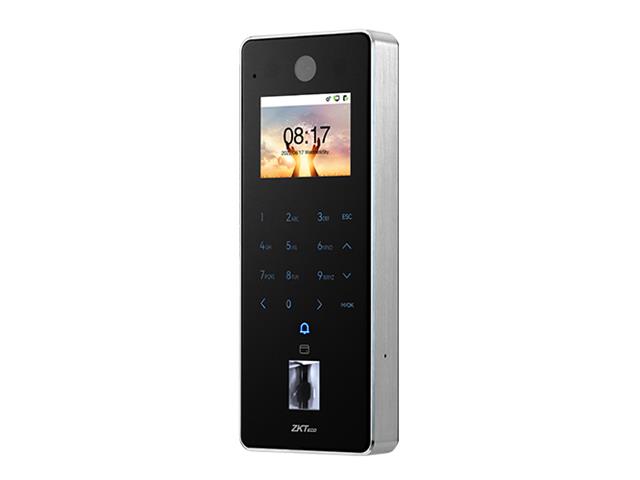

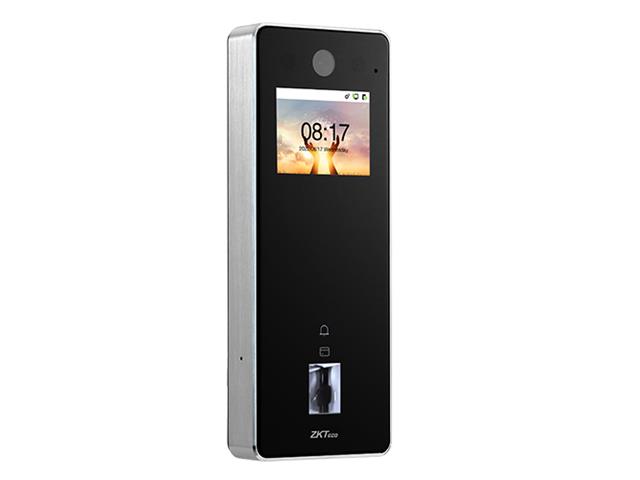

F35 from ZKTeco is a standalone access control terminal featuring a video intercom function. F35 adopts in-glass fingerprint verification, offering secure biometric authentication without a dedicated button.

F35 also supports multiple tech card modules for verification, and it can be a time and attendance terminal whenintegrated with the ZKBioTime software.

Also, one of the notable features of the F35 is that it has a 2.4-inch color monitor, a 2MP camera, a built-in microphone and speakers for two-way audio and one-way video communication. When F35 connects to the Wi-Fi (optional), it is compatible with the ZSmart App and can connect with the video intercom indoor unit via SIP protocol. F35 supports the ONVIF protocol; its firmware has AC push and can convert to TA push.

The aluminium alloy frame of the F35 offers robust protection, and it attained an IP65 protection rating, guaranteeing that this terminal operates in adverse weather.

Features

In-glass fingerprint verification.
Aluminium alloy frame and 2.5D glass panel.
A 2.4-inch color monitor for one-way video communication.
Attained IP65 protection rating with dustproof and waterproof.
Communication: TCP/IP and Wi-Fi (Optional).
Support video talk via mobile app: ZSmart.
Available card modules: 125 kHz / 13.56MHz / Multi tech card:
125kHz & 13.56MHz ID & IC & DESFire EV1 / EV2 / Felica / HID proxy / HID ICLASS.
Multiple Verification Methods: Fingerprint / Card / Password.
Support AC push and convert to TA push.
Support Doorbell and Wireless Doorbell (Optional).

Specifications

Model : F35
Display : 2.4"@ TFT Color LCD Screen (720*1280)
Camera : Camera @ 2MP
Field of View : Diagonal: 145°, Horizontal: 118°, Vertical: 62°
Operation System : Linux
Hardware
- CPU: 1.2GHz Dual Core
- RAM: 256MB; ROM: 512MB
- Speaker: 8ohms±20% @1.0W
- Microphone: *1 (Sensitivity: -29 to -35 dB / Omni-directional / Signal-to-Noise Ratio: 58 dB /
- Impedance: 2.2 kΩ
- Fingerprint Sensor: In-Glass Fingerprint / Z-ID
Authentication method : Fingerprint / Card / Password (Physical Touch Keypad )
User Capacity : 10,000 (1:N)
Card Capacity : 10,000 (1:N)
Fingerprint Template Capacity : 10,000 (1:N)
Transaction Capacity : 500,000
Max. User Password Length : 6 to 8 Digits
Biometric Verification Speed : less than 0.3 sec (Fingerprint)
False Acceptance Rate (FAR) % : FAR ≦ 0.0001% (ZKFingerprint V10.0)
False Rejection Rate (FRR) % : FRR ≦ 0.01% ; (ZKFingerprint V10.0)
Biometric Algorithm : ZKFingerprint V10.0
Card Type
ID Card@125 kHz (Standard)
IC Card@13.56 MHz (Optional)
Optional Multi-Tech Module:
Module1: ID & IC & DESFire EV1 / EV2; (125 kHz & 13.56 MHz Dual Frequency)
Module 2: ID & IC & DESFire EV1 / EV 2 & FeliCa & Legic & HID Prox (125 kHz & 13.56 MHz Dual Frequency)
Module 3: ID & IC & DESFire EV1 / EV2 & FeliCa & Legic & HID Prox & HID iClass (125 kHz & 13.56 MHz Dual Frequency)
Communication
- TCP/IP*1
- Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz
- Wiegand (Input & Output)*1
- RS485: ZKTeco RS485 *1
- Aux Inputs *1, Aux Outputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1, Doorbell*1,
Standard Functions
- Webserver, ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access
- Levels, Groups, Holidays, Anti Passback, Record Query, Tamper Switch Alarm, Multiple Verification
- Methods Video Door Phone, ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push, Protocol Switch, HTTPS / SSH Backend Access, T9 Keyboard (Input)
Optional Functions : ZSmart, SIP Client, Wi-Fi, IC Card, Multi-Tech Module: Module 1 / Module2 / Module 3, Wireless Doorbell
Access Control Interface : RS485 (DM10 Controller 1 Door Expansion / RS485 Card Reader / Fingerprint Reader)
Power Supply : DC 12V 3A
Operating Temperature : -25°C to 55°C
Operating Humidity : 10% to 90% RH (Non-condensing)
Dimensions : 195 mm*75 mm*25.35 mm (L*W*H)
Gross Weight : 1.13 Kg
Net Weight : 0.52 Kg
Supported Software : Software: ZKBio CVAccess / ZKBioTime Mobile App: ZSmart
Installation : Wall-mount (Compatible with Asian Gang-box / Single Gang-Box / European Gang-Box)
Housing Material : Aluminium Alloy
Ingress Protection Rating
- IP65 (waterproof and dustproof )
- IK04 (Vandal Resistant)
Certifications : ISO14001, ISO9001, CE, FCC, RoHS

Additional Information

Brand

ZK Teco

Downloads

Datasheet - ZKT F35

PDF File

1.63 MB
