HKV DS-7324HGHI-SH Hikvision 24 Channel Turbo HD DVR with 4 SATA Interfaces and 920 X 1080P HDMI and VGA Outputs [HKV DS-7324HGHI-SH]
HKV DS-7324HGHI-SH Hikvision 24 Channel Turbo HD DVR with 4 SATA Interfaces and 920 X 1080P HDMI and VGA Outputs [HKV DS-7324HGHI-SH] HKV DS-7324HGHI-SH Hikvision 24 Channel Turbo HD DVR with 4 SATA Interfaces and 920 X 1080P HDMI and VGA Outputs [HKV DS-7324HGHI-SH]

24 Channel HD DVR

24 Channel / HD DVR

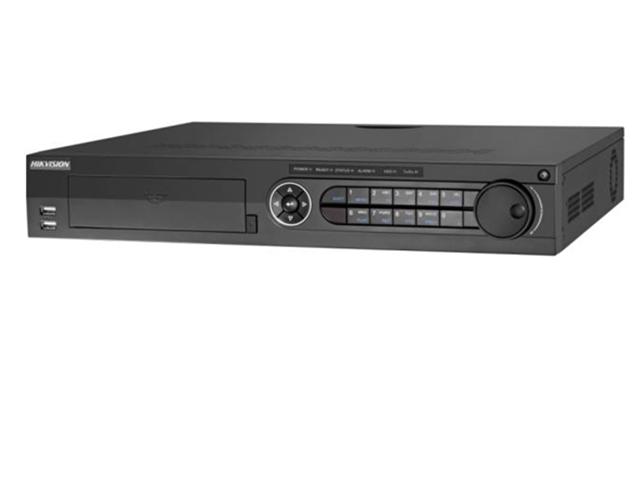

HKV DS-7324HGHI-SH Hikvision 24 Channel Turbo HD DVR with 4 SATA Interfaces and 920 X 1080P HDMI and VGA Outputs
Part No: HKV DS-7324HGHI-SH
Discontinued
Specifications, Prices & Availability may change without notice. Images are for illustration purposes only. E&OE

Overview

DS-7300HGHI-SH series DVR (Digital Video Recorder) is a new generation recorder developed by Hikvision independently which can connect HD analog/network cameras and Coaxitron cameras and provide powerful surveillance. Combined with multiple advanced technologies, such as audio and video encoding & decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other devices to build a comprehensive surveillance system. The DS-7300HGHI-SH series DVR are widely applied in the areas of finance, public security, military, communication, transportation, education, etc.

Features

  • Connectable to TVI and analog cameras;
  • Connectable to the Coaxitron camera/dome with long transmission distance;
  • Connectable to network cameras;
  • Simultaneous HDMI and VGA outputs at up to 1920×1080P resolution.
  • New GUI and supports starting record with one key;
  • Redundant recording, holiday recording schedule configuration;
  • Instant playback for assigned camera during multi-channel live view mode;
  • Support up to 24/32-ch synchronous playback; and reverse playback for multi-channel;
  • Smart playback to go through less effective information;
  • Manual video quality diagnostics;
  • Support VCA alarm (line crossing detection and intrusion detection);
  • Customization of tags, searching and playing back by tags;
  • Locking and unlocking record files;
  • Support HDD quota and group management; different capacity can be assigned to different cameras under quota mode;
  • Provide 4 SATA interfaces and 1 eSATA interface for record and backup;
  • 1 self-adaptive 10M/100M/1000M network interface;
  • Support access by EZVIZ Cloud P2P;
  • Support Hikvision DDNS (Dynamic Domain Name System);
  • Network detection function.

Specifications

Video/Audio Input

  • Video compression : H.264
  • Analog and HD-TVI video input : 24-ch; BNC interface (1.0Vp-p, 75 Ω)
  • Supported camera types : 720P/25, 720P/30, 720P/50, 720P/60, 1080P/25, 1080P/30, CVBS
  • IP video input : 8-ch (up to 32-ch) Up to 2MP resolution
  • Audio compression : G.711u
  • Audio input : 4-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Two-way audio in : 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Video/Audio Output

  • HDMI / VGA output : 1920 × 1080/60 Hz ,1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz z
  • Encoding resolution
    • Main stream : 1080P (non-real-time) / 720P / WD1 / VGA / 4C
    • Sub-stream : WD1 (non-real-time)/ 4CIF(non-real-time) / CIF / QCIF / QVGA
  • Frame rate
    • Main stream : 1/16 fps ~ Real time frame rate
    • Sub-stream : 1/16 fps ~ Real time frame rate
  • Video bitrate : 32 Kbps-6 Mbps
  • Audio output : 1-ch, RCA (Linear, 1KΩ)
  • Audio bitrate : 64 Kbps
  • Dual-stream : Support
  • Stream type : Video, Video & Audio
  • Synchronous playback : 24-ch
  • Playback resolution : 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF

Network Management

  • Remote connections : 128
  • Network protocols : TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS

Hard Disk

  • Type : 4 SATA interfaces for 4 HDDs; 1 eSATA interface
  • Capacity : Up to 4 TB capacity for each disk

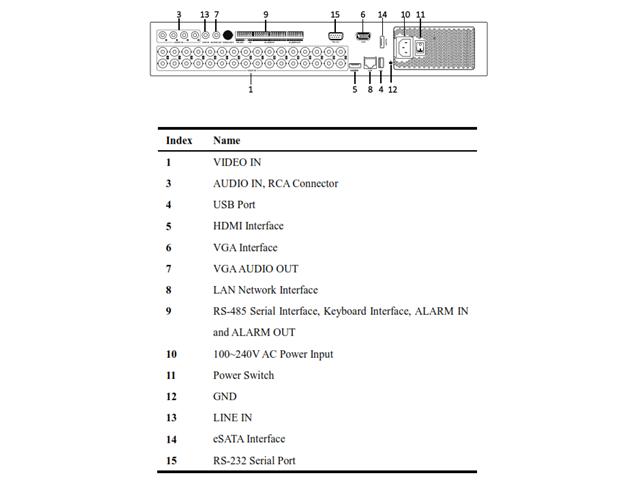

External Interface

  • Network interface : 1; 10M / 100M self-adaptive Ethernet interface
  • USB port : 3 × USB2.0
  • Alarm in/out : 16/4
  • Serial Interface : RS-232, RS-485, Keyboard

General

  • Power supply : 100~240VAC, 47~63HZ
  • Consumption(without hard disks) : ≤ 55W
  • Working temperature : -10ºC ~ 55ºC
  • Working humidity : 10% ~ 90%
  • Chassis : 19-inch rack-mounted 1.5U chassis
  • Weight (without hard disks) : ≤ 5 kg
  • Dimensions : 445 × 390 × 70 mm

Additional Information

Brand Hikvision
Power Supply 100~240VAC
Power Consumption 55W

Downloads

PDF File
528.07 KB
