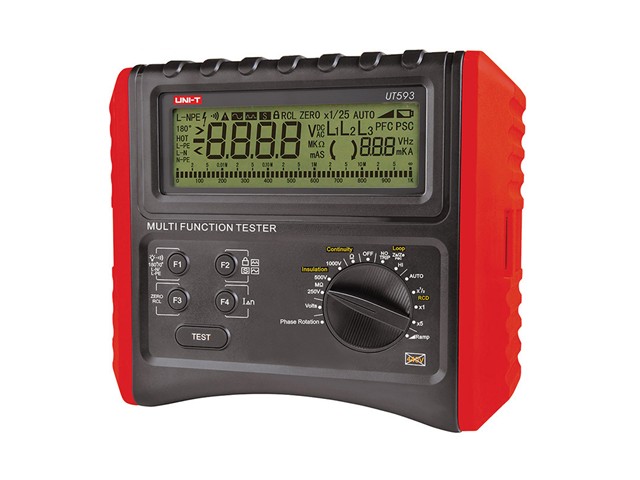

UT593 Multifunction Loop Tester

Multifunction Loop Tester

Insulation Resistance DC Voltage AC Voltage DC Current AC Current Resistance Capacitance Frequency Temperature

UT593 :: Multifunction Loop Tester

Part No: UNI-T UT593

	14 892.50	ZAR
		inc
for 1 Each

(Quoting) Add to Cart

Specifications, Prices & Availability may change without notice. Images are for illustration purposes only. E&OE

Specifications

Insulation Resistance (Ω)
- Test Voltages : 250V/500V/1000V : ±10%
- 250V : 0.05MΩ~250MΩ : ±(5%+5)
- 500V : 0.05MΩ~500MΩ
- 1000V : 0.05MΩ~1000MΩ
- Short-Circuit Current : <2mA
Low Resistance Continuity Test(Ω)
- Range : 0.00Ω~199Ω : ±(2%+5)
- Test Current : 0.00~2Ω: >200mA
Line Impedance (Ω) : Range : 0.01Ω~2000Ω : ±(5%+5)
- Operational Voltage(Freq.) : 195V~440V(45Hz~65Hz)
- Test Current : 20A
- PFC Range : 0KA~26KA
Loop Impedance (Ω)
- Range : 0.01Ω~2000Ω : ±(5%+5)
- Operational Voltage(Freq.) : 195V~253V(45Hz~65Hz)
- Test Current : 20A
- PFC Range : 0KA~26KA
Loop Impedance Without Tripping(Ω)
- Range : 1.00Ω~2000Ω : ±(5%+5)
- Operational Voltage(Freq.) : 195V~253V(45Hz~65Hz)
- Test Current : 15mA
- PFC Range : 0KA~26KA
RCD :
- Operational Voltage(Freq.) : 195V~253V(45Hz~65Hz)
- Test Current : 10mA/30mA/100mA/300mA/500mA : ±10%
- Trip Time :
  - ×1/2 I△n Range:0ms~2000ms : ±(5%+5)
  - ×1 I△n Range:0ms~300ms : ±(5%+5)
  - ×1 I△n Range:0ms~500ms(Selective Countdown) : ±(5%+5)
  - ×5 I△n Range:0ms~40ms : ±(5%+5)
- Phase Sequence Test : Operational Voltage(Freq.) : 100V~440V(45Hz~65Hz)
- Indication : Order:L1-> L2-> L3 Positive change;L1-> L3-> L2 To reverse
RCD Measurement RAMP Slope
- Test Current Range : 10mA/30mA/100mA/300mA/500mA : ±10%
AC Voltage (V)
- Range : 0V~440V : ±(5%+2)
- Frequency Response : 45Hz~60Hz
- Resolution : 1V
Display Count : 9999
Auto Power Off : yes
Low Battery Indication : yes
Data Logging : yes
LCD Backlight : yes
Auto Half-wave Test : yes
RCD Countdown Measurement : 30 Seconds
RCD Half-wave Test : yes
Phase Switch(RCD) : 0°and 180°
Power : 1.5V Batteries(LR6) X 6
LCD Size : 125mm X 37mm
Product Color : Red and Grey
Product Net Weight : 1000g
Product Size : 210mm x 175mm x 90 mm
Standard Accessories : Batteries, Test Lead (1 x Green, 1x Black, 1 x Red), Specialized Test Lead, Remote Control Test Lead
Standard Individual Packing : Gift Box, Tool Box, User Manual

Additional Information

Brand

UNI-T

Downloads

User Manual - UT593,595

PDF File

663.21 KB
