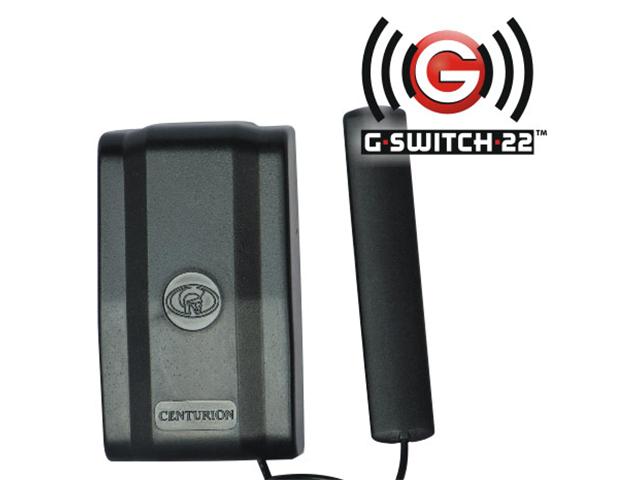

2G GSM Network Based Monitoring and Control Device [GSM G-SWITCH 22]
2G GSM Network Based Monitoring and Control Device [GSM G-SWITCH 22] 2G GSM Network Based Monitoring and Control Device [GSM G-SWITCH 22]

2G GSM Network Based Monitoring and Control Device

2G GSM Network Based Monitoring and Control Device Controller
2G GSM Network Based Monitoring and Control Device
Part No: GSM G-SWITCH 22
Discontinued
Specifications, Prices & Availability may change without notice. Images are for illustration purposes only. E&OE

Overview

The Centurion Systems' G-SWITCH-22 gives you complete control at your fingertips. With the ability to switch devices on and off and send you alerts - all via your phone - the G-SWITCH-22 lets you look after your home or business from just about anywhere with a 2G GSM network. The G-SWITCH-22 offers two outputs for activation, and two inputs for monitoring and can be effortlessly and securely administered using the free G-WEB online portal or via SMS.

Features

  • Control two electrical devices, such as an automated gate and garage door operator, from anywhere in the world
  • Monitor a system by receiving SMS alerts - for example when your mains power has failed or your alarm has been activated
  • Caters for up to 1200 users, making it suitable for multi-user installations
  • Activate devices with a Missed Call (free) or SMS
  • Easy setup and administration via CENTURION's G-WEB online interface, or via SMS from your mobile phone
  • Secure access with password protection for enhanced system security
  • Inputs can be set to react to Rising Edges, Falling Edges or both - ideal for monitoring mains, alarm states, etc.
  • Stores up to 3000 detailed transaction logs for greater peace of mind
  • Adjustable Filter and Blanking Times - make event monitoring work for you
  • Over-the-air bootloadable - update device firmware from the comfort of your home or office

Examples of devices that can be monitored via G-SWITCH inputs :

  • House alarm : Activated
  • Electric fence : Alarm triggered
  • Geyser status : On/Off
  • Mains power : On/Off
  • Fridge aboard your boat : On/Off
  • Borehole pump status : Running/Off
  • Water reservoir : Full/Empty
  • Entrance gate status : Open/Pedestrian
  • Vehicle monitoring: Ignition or alarm activated, or off or your reservoir is full or empty

Examples of devices that can be sw;tclied on, off rr activated via G-SWITCH outputs :

  • Automated entrance gates and garage doors
  • Geysers
  • Borehole pumps
  • Alarm systems
  • Lights
  • Airconditioners
  • Refrigerators
  • Pool pumps

Specifications

  • Input voltage : 11V - 30V DC only
  • Standby current : 100mA
  • Maximum current : 500mA
  • Operating temperature : -20°C - +85°C
  • Output relay rating : 1 A @ 30V DC (Outputs 1 and 2)
  • Housing material : ABS
  • Degree of protection : IP55
  • Memory capacity : 1200 individual numbers
  • Memory retention : >200 years
  • Output pulse time range : lms (default) to 50 days
  • Network required : 2G GSM 900/1800MHz
  • SIM card required : Yes (activated)
  • Outputs : 2 (potential-free)
  • Inputs : 2 (reacts to Rising, Falling or both edges)

Additional Information

Brand Centurion

Downloads

PDF File
1022.38 KB
